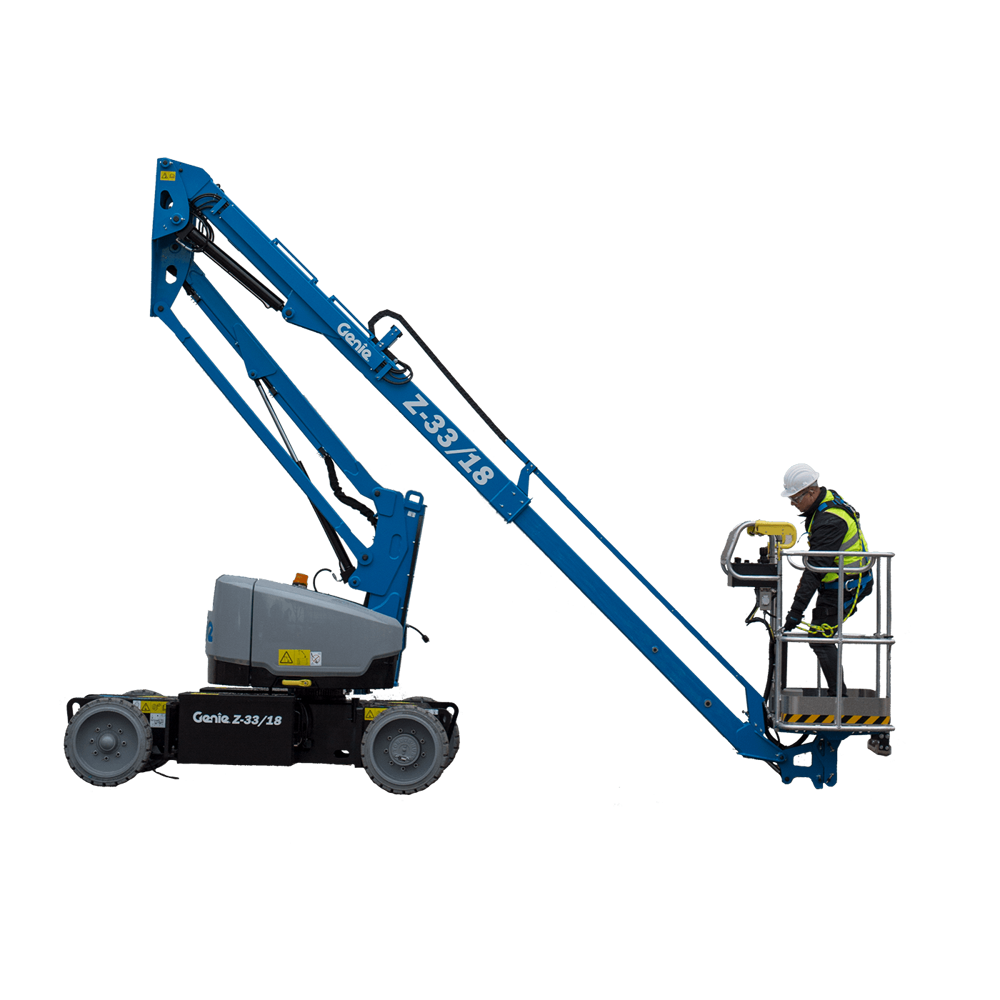

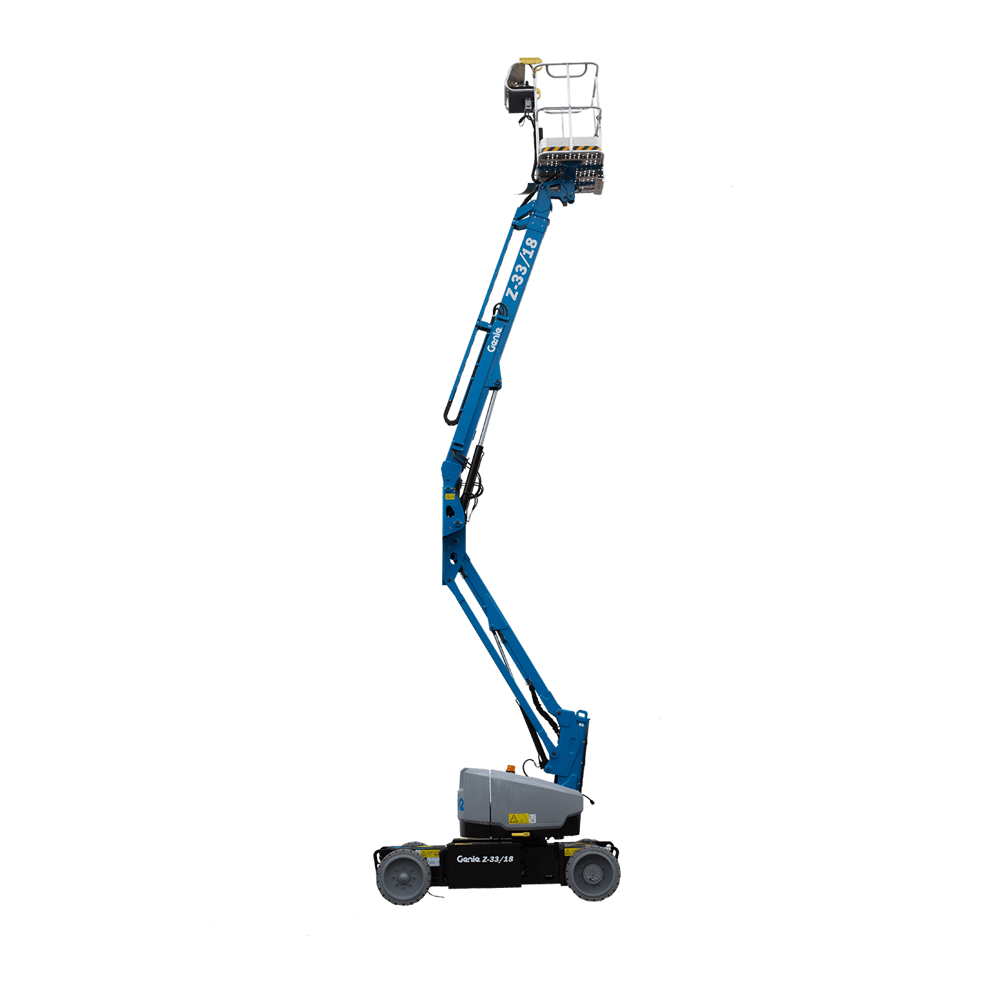

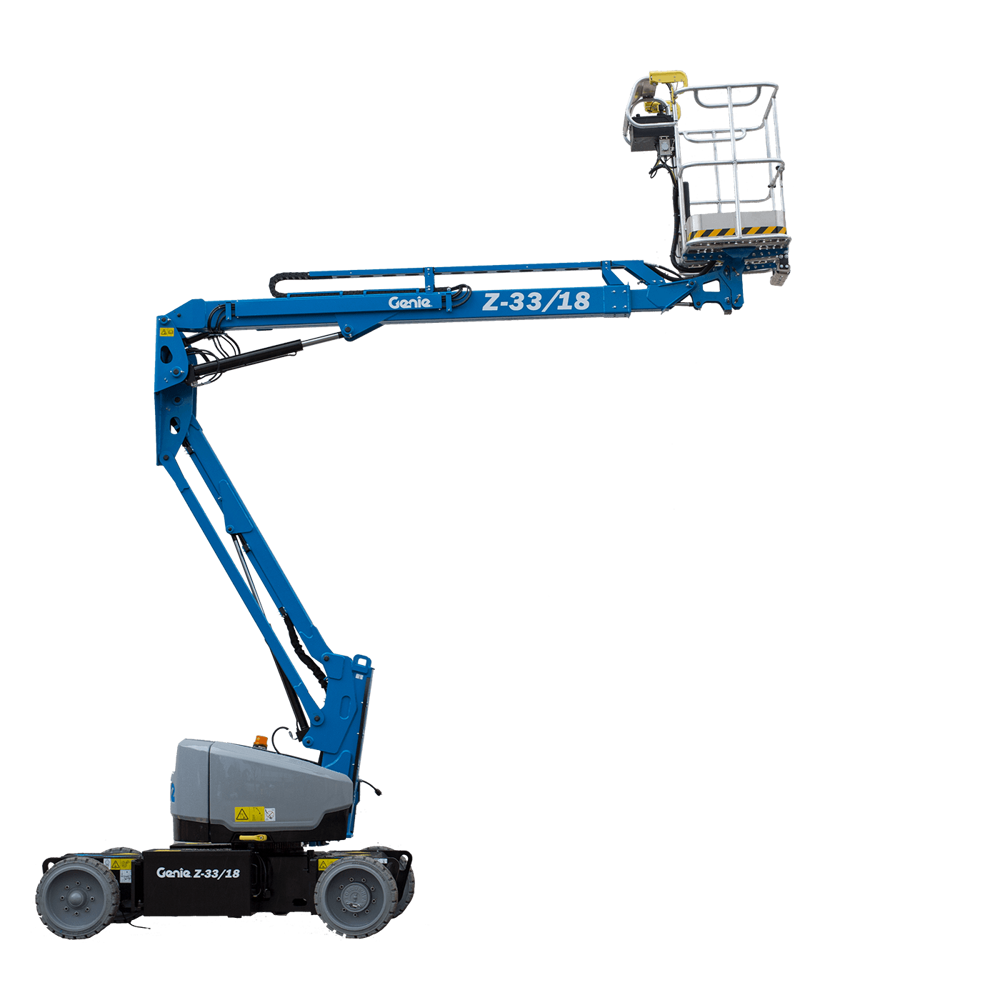

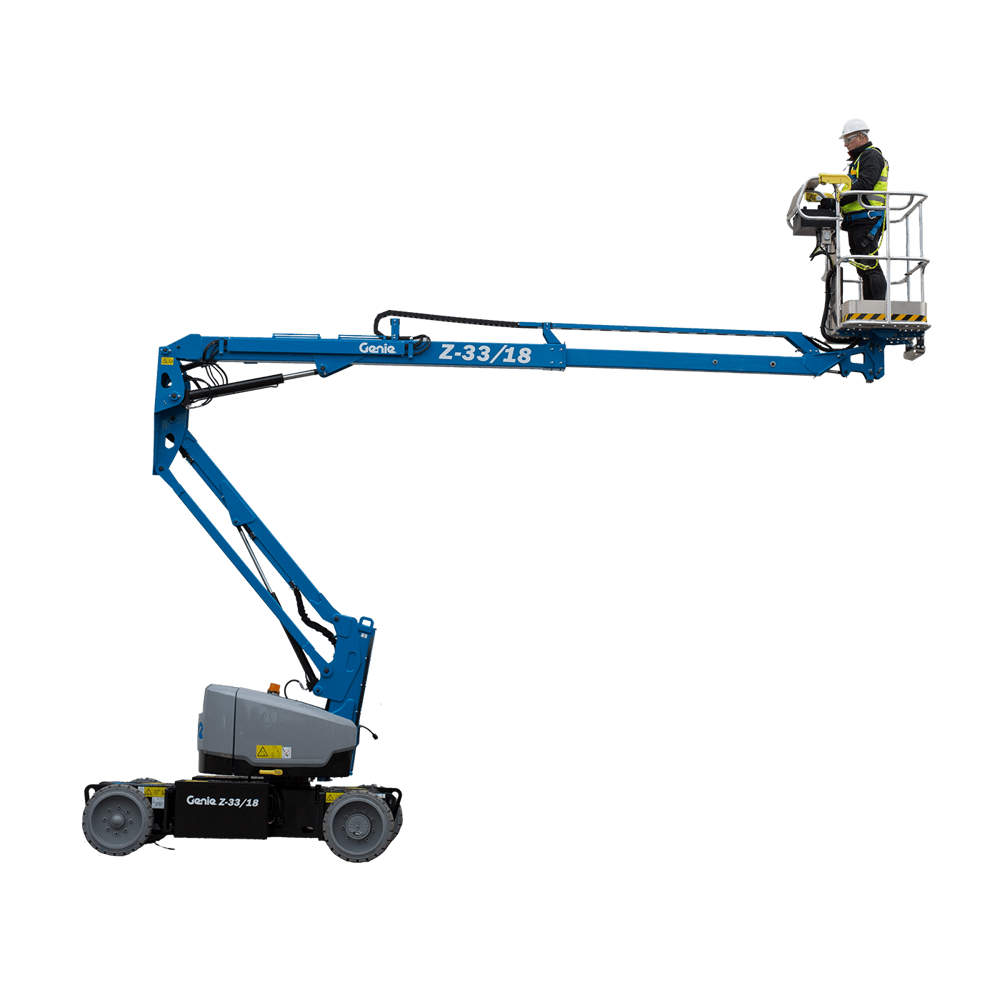

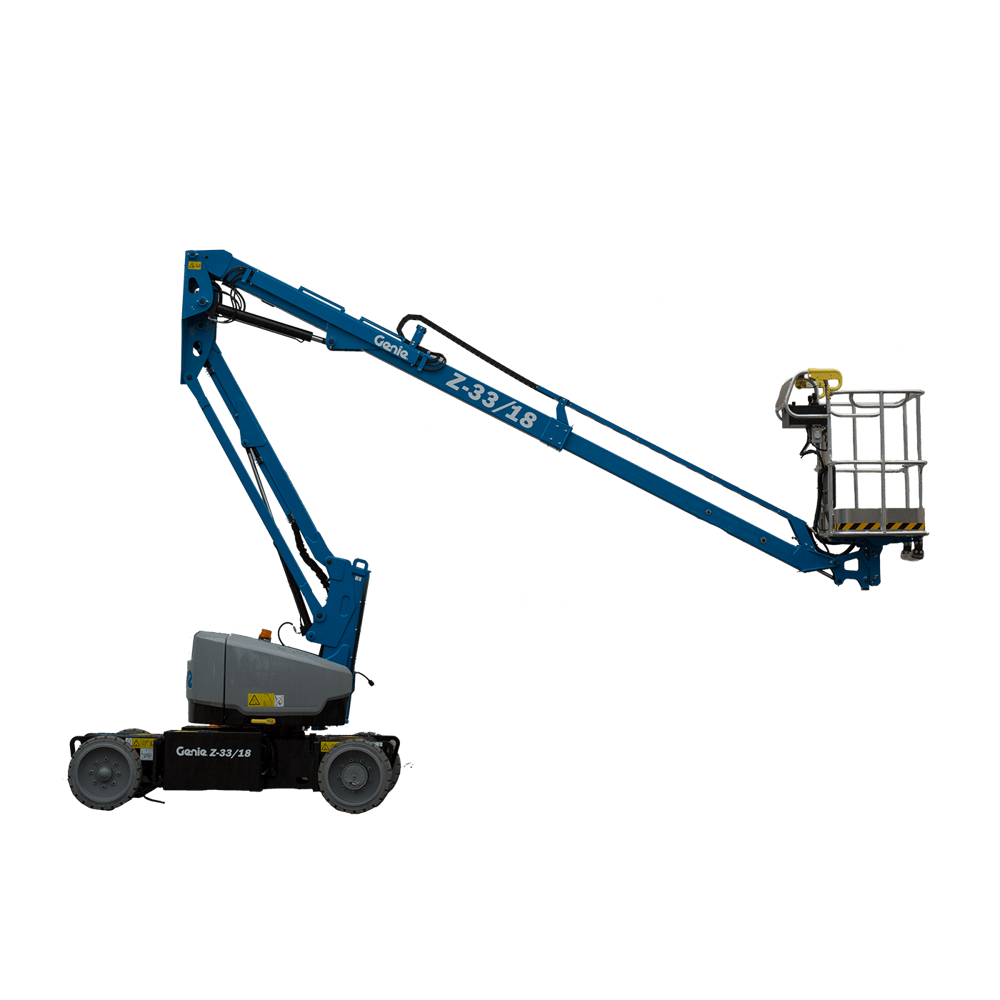

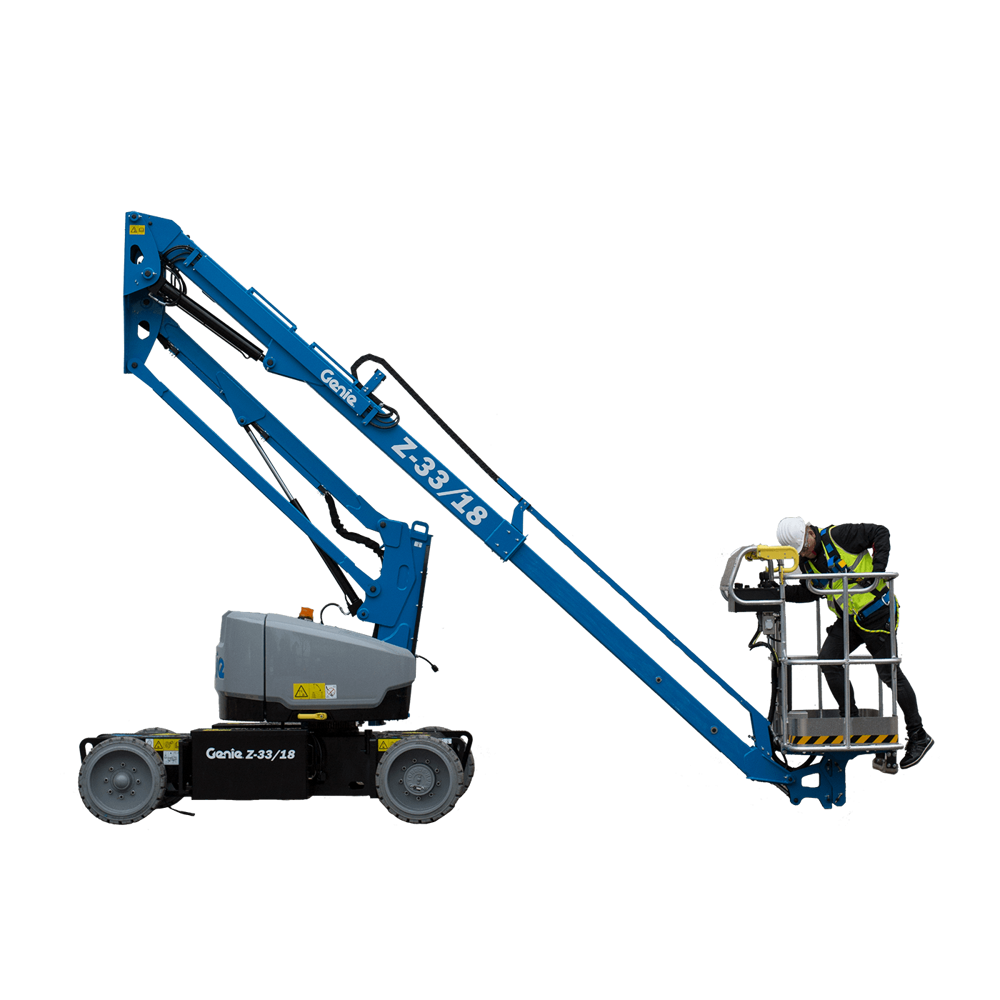

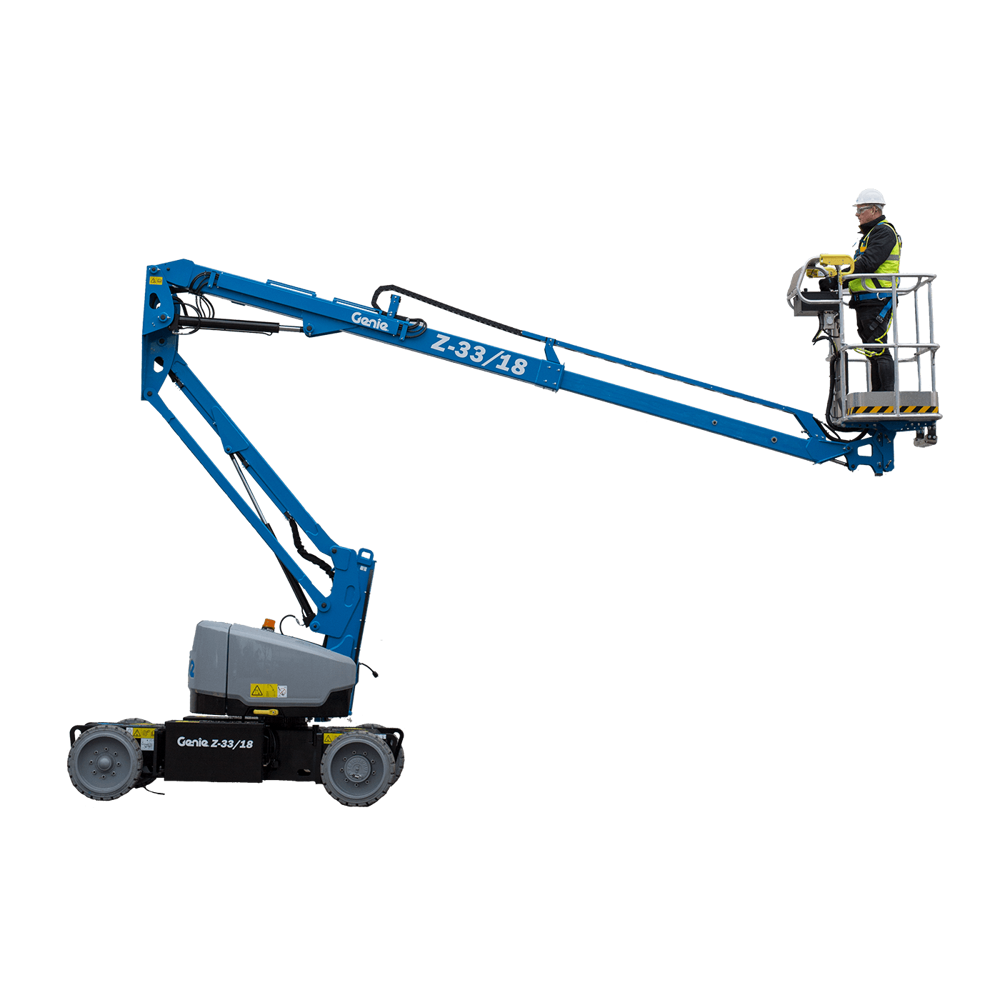

10m Battery Boom Lift - Genie Z33-18
10m Battery Boom Lift - Genie Z33-18
This machine or equivalent available for UK wide delivery
Applications & uses of machine
39.37ft
Working height200kg
Platform capacityIndoor / Outdoor
EnvironmentUp & Over
MovementIPAF: 3b
IPAF RatingFinished
Indoor useEven
Outdoor use- 30%
Up to 30%
Max gradient
10m Battery Boom Lift - Genie Z33/18
The quiet and emission-free Genie Z33/18 is an excellent choice for reaching indoor working heights of 12m. It is ideal for 'up and over' reach requirements in very confined areas and narrow passageways and can fit through standard double doorways. It is suitable for both indoor and outdoor smooth surface use.
Technical Specification
| Power Type | Battery |
|---|---|
| Extended Max Height | 32.81ft |
| Working Height | 39.37ft |
| Platform Length | 2.49ft |
| Platform Length Extended | 2.49ft |
| Platform Width | 3.84ft |
| Outreach | 18.27ft |
| Up & Over Height | 14.04ft |
| Swing | 400° |
| Tail Swing | 1.16° |
| Machine Length | 13.68ft |
| Machine Width | 4.92ft |
| Stowed Height | 6.5ft |
| Stowed Height Rails Down | 6.5ft |
| Max Load Capacity | 200kg |
| Weight | 3665kg |
| Wheelbase | 6.23ft |
| Gradeability | 30% |
| Environment | Indoor / Outdoor |
| Surface Indoor | Finished |
| Surface Outdoor | Even |
| Tyres | Non Marking |
