8m Battery Boom Lift - Haulotte Star10
8m Battery Boom Lift - Haulotte Star10
This machine or equivalent available for UK wide delivery
Applications & uses of machine
32.81ft
Working height200kg
Platform capacityIndoor / Outdoor
EnvironmentUp & Over
MovementIPAF: 3b
IPAF RatingFinished
Indoor useEven
Outdoor use- 25%
Up to 25%
Max gradient
8m Battery Boom Lift - Haulotte Star10

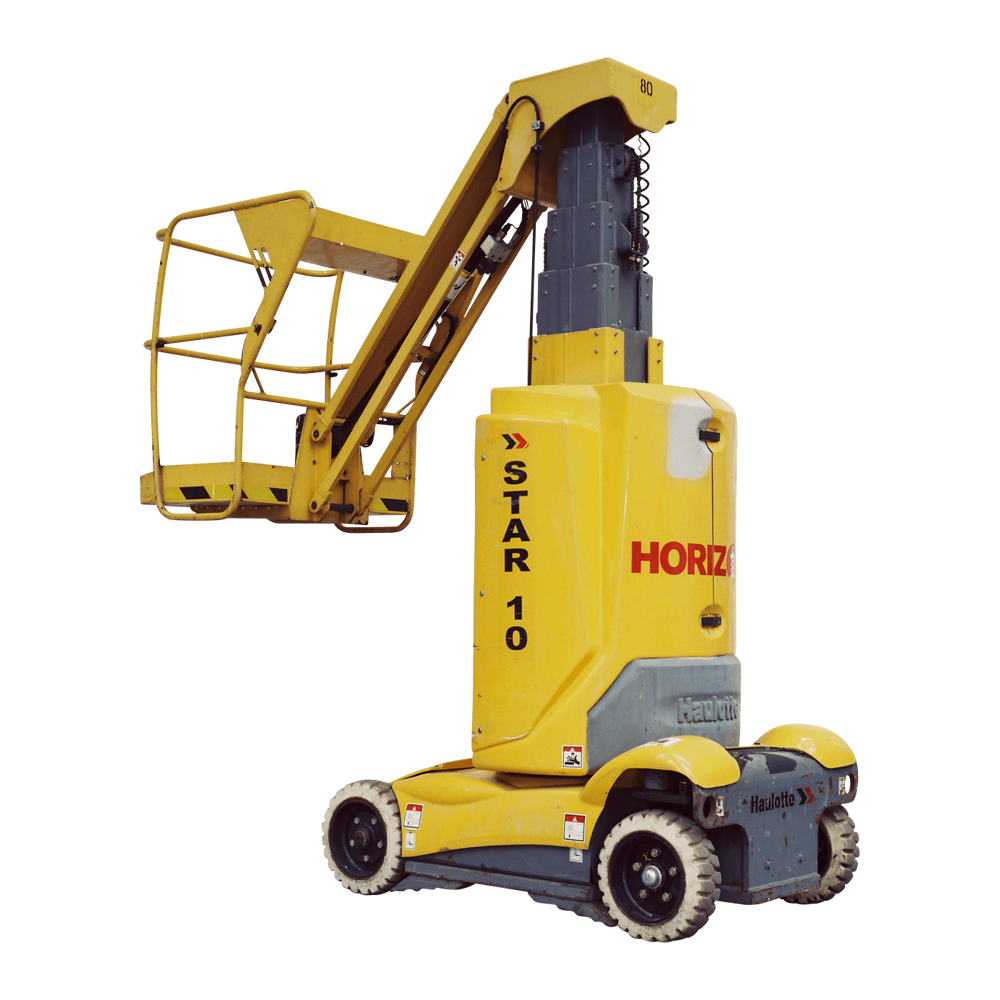

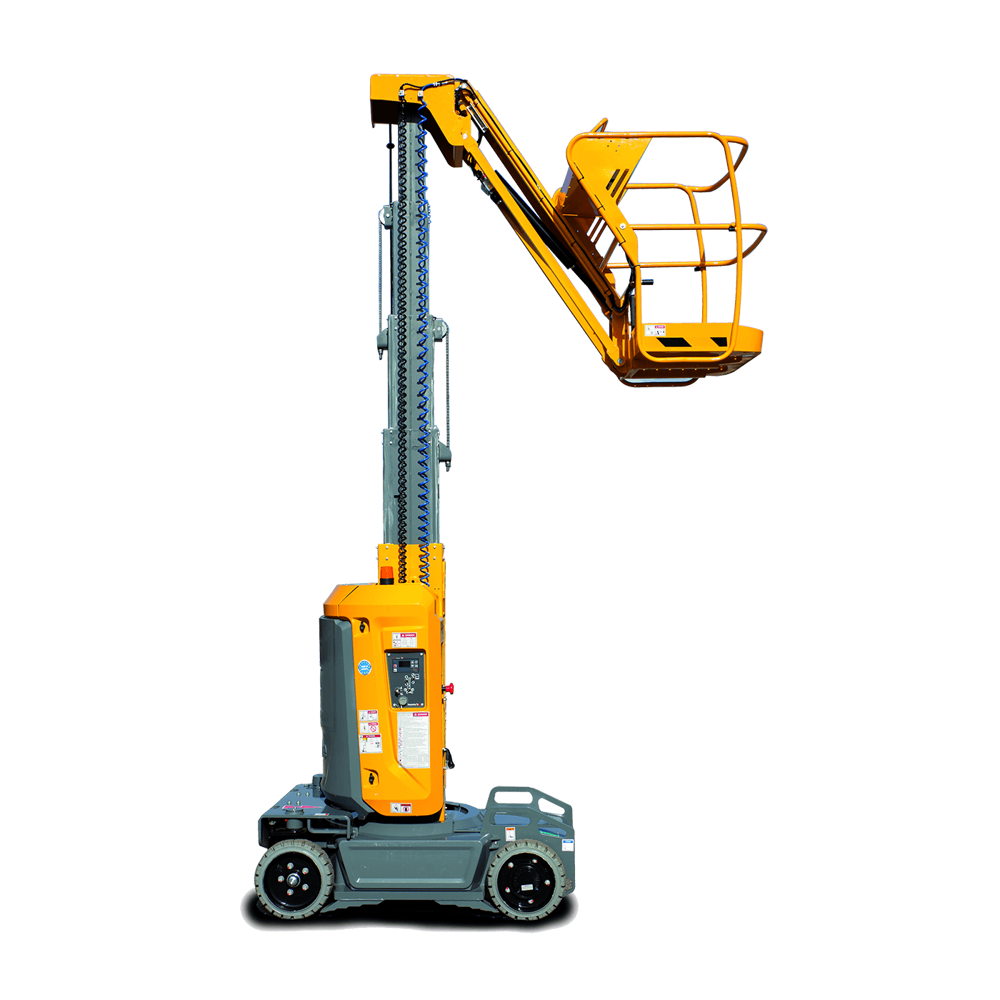

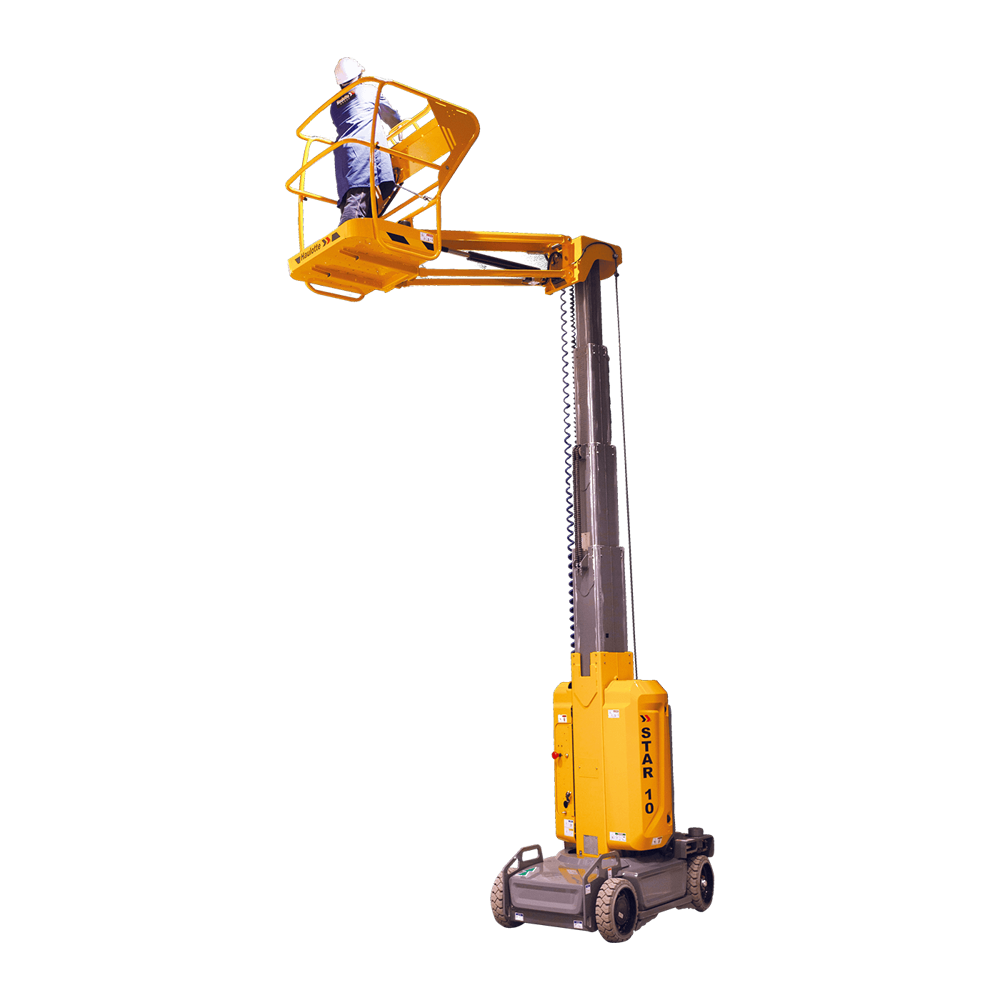

The Haulotte Star 10 is ideal for difficult-to-reach places. It can be used both indoors and out but is particularly suited to internal work at height due to its non-marking tyres. This is the perfect platform for maintenance work and warehouse tasks.
Technical Specification
| Power Type | Battery |
|---|---|
| Extended Max Height | 26.25ft |
| Working Height | 32.81ft |
| Platform Length | 3.22ft |
| Platform Length Extended | 3.22ft |
| Platform Width | 2.56ft |
| Outreach | 9.84ft |
| Up & Over Height | 26.25ft |
| Swing | 345° |
| Machine Length | 8.86ft |
| Machine Width | 3.28ft |
| Stowed Height | 6.53ft |
| Stowed Height Rails Down | 6.53ft |
| Max Load Capacity | 200kg |
| Weight | 2677kg |
| Wheelbase | 3.94ft |
| Gradeability | 25% |
| Environment | Indoor / Outdoor |
| Surface Indoor | Finished |
| Surface Outdoor | Even |
| Tyres | Non Marking |
