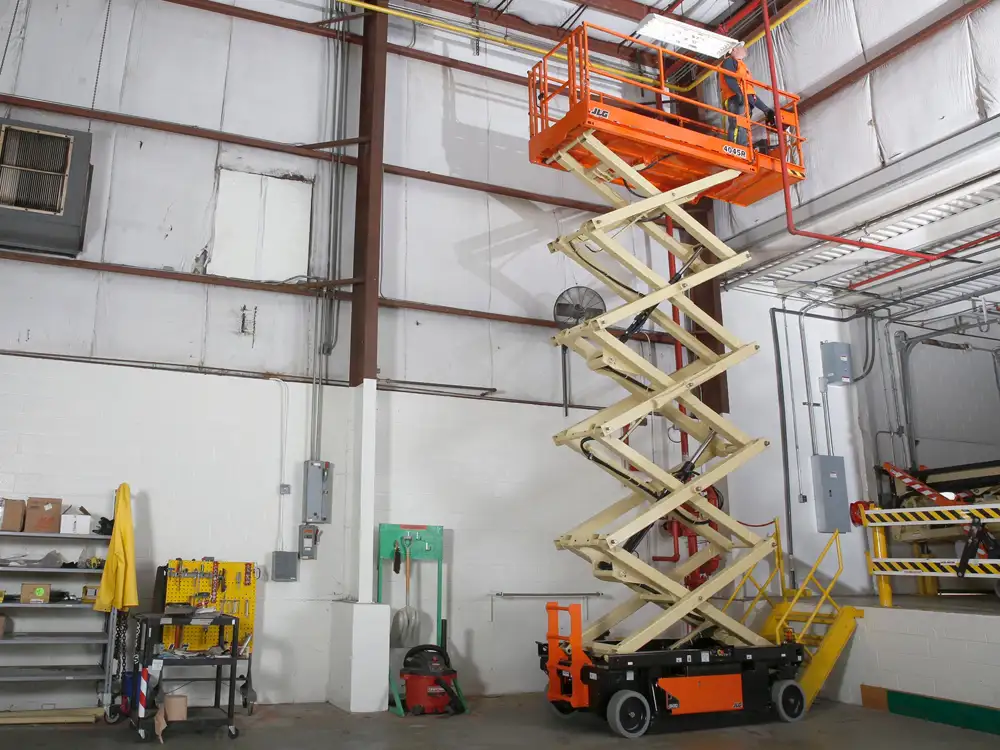

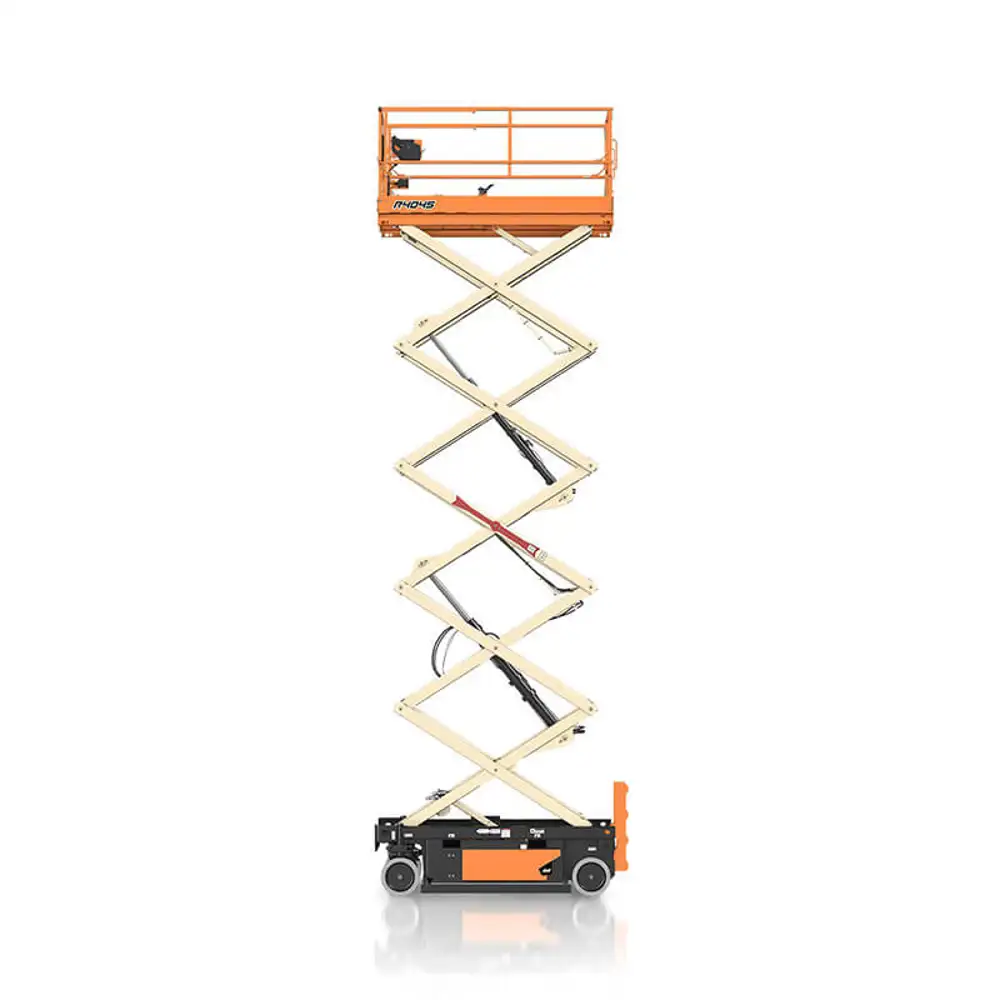

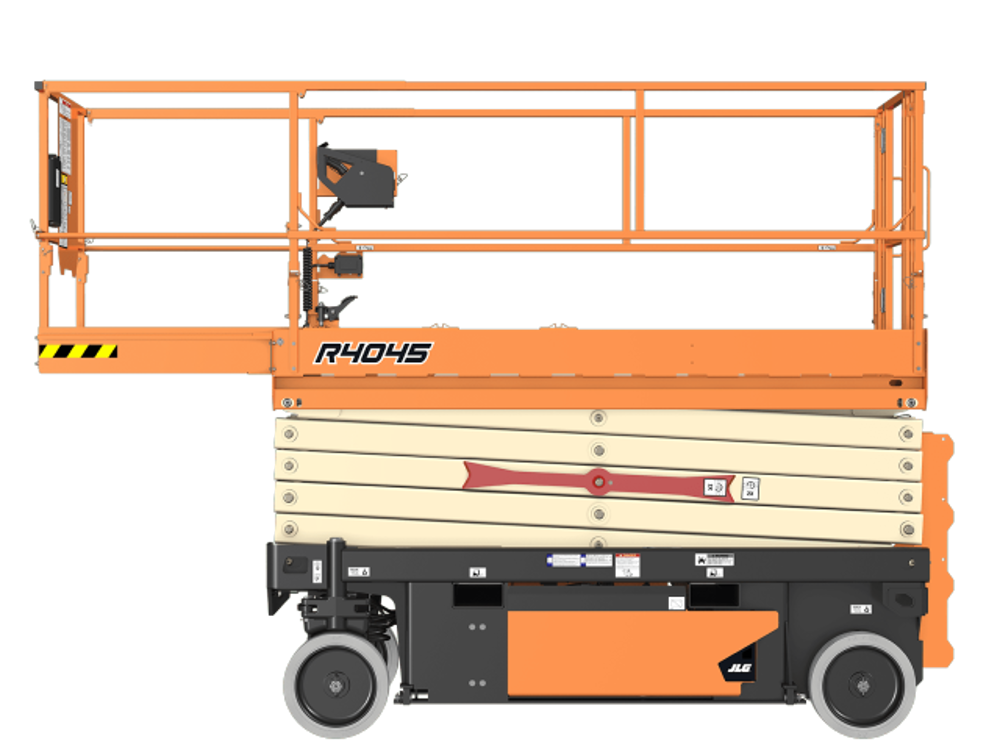

12m Battery Scissor Lift - JLG R4045
12m Battery Scissor Lift - JLG R4045
This machine or equivalent available for UK wide delivery
Applications & uses
45.93ft
Working heightIndoor / Outdoor
EnvironmentStraight Up Only
MovementIPAF: 3a
IPAF RatingFinished
Indoor useEven
Outdoor use- 25%
Up to 25%
Max gradient
Platform Height
9.68m Battery Scissor Lift - JLG 3246ES
The JLG 3246ES is a great choice for a quieter, cleaner operation. Its tight turning radius enables great manoeuvrability. Featuring only two hydraulic hoses and four hydraulic fittings on the entire machine, it will allow you to stay on the job longer and reduce operating costs by reducing chances for leaks and service calls.
Technical Specification
| Power Type | Battery |
|---|---|
| Working Height | 45.93ft |
| Platform Length | 7.97ft |
| Platform Length Extended | 10.95ft |
| Platform Width | 3.44ft |
| Machine Length | 8.89ft |
| Machine Width | 3.74ft |
| Stowed Height | 8.3ft |
| Stowed Height Rails Down | 2.3ft |
| Max Load Capacity | 350kg |
| Weight | 3175kg |
| Wheelbase | 6.6ft |
| Gradeability | 25% |
| Environment | Indoor / Outdoor |
| Surface Indoor | Finished |
| Surface Outdoor | Even |
| Tyres | Non Marking |
| Maximum Ground Bearing Pressure | 137 psi / 9.65 kg/cm2 |
